Spray tips are designated by the spray angle (a narrower angle produces more force over a small area, which is great for tough jobs but may gouge or strip softer surfaces), and by orifice size. The orifice size designates the gallons per minute flow at 4000 psi. For pumps operating at other pressures, the correct orifice can be chosen from the chart below. Using a larger orifice than recommended will cause loss of cleaning pressure. Using a smaller orifice will mean less flow of water at the maximum pump pressure. Spray tips are available color coded by spray angle with quick disconnect ends, or with 1/4" male NPT ends. Common nozzles are shown below. Other sizes are available on request.
Part No. | Description | |
PW-GA-36 | 5000 psi 10 GPM gun assembly with 36" insulated, plated steel lance with 3/8" quick coupling inlet and 1/4" female quick coupling tip |
|
PW-G | 5000 psi, 10 GPM gun with 3/8" female NPT inlet and 1/4" female NPT outlet | |
PW-G-W | Weeping version to prevent freezing | |
PW-L24 | 24" insulated, plated steel tip lance with 1/4" NPT | |
PW-L36 | 36" insulated, plated steel tip lance with 1/4" NPT | |
PW-L48 | 48" insulated, plated steel tip lance with 1/4" NPT | |
PW-LB-36 | 36" insulated, bent tip lance with 1/4" NPT |
Part No. | Description | |
PW-SC-02 | 1⁄8" female NPT | |
PW-SC-04 | 1⁄4" female NPT | |
PW-SC-06 | 3⁄8" female NPT |
Part No. | Color | Angle | Orifice | |
PW-S00-4 | Red | 0° | 4.0 | |
PW-S00-5 | Red | 0° | 5.0 |
Part No. | Color | Angle | Orifice | |
PW-S15-4 | Yellow | 15° | 4.0 | |
PW-S15-5 | Yellow | 15° | 5.0 |
Part No. | Color | Angle | Orifice | |
PW-S25-4 | Green | 25° | 4.0 | |
PW-S25-5 | Green | 25° | 5.0 |
Part No. | Color | Angle | Orifice | |
PW-S40-4 | White | 40° | 4.0 | |
PW-S40-5 | White | 40° | 5.0 |
Part No. | Color | Angle | Orifice | |
PW-S-KIT-4 | Four colors | 0,15,40,soap | 4.0 | |
PW-S-KIT-5 | Four colors | 0,15,40,soap | 5.0 |
Part No. | Color | Angle | Orifice | |
PW-SOAP | Black |
Part No. | Color | Angle | Orifice | |
PW-T00-4 | 0° | 4.0 | ||
PW-T00-5 | 0° | 5.0 | ||
PW-T15-4 | 15° | 4.0 | ||
PW-T15-5 | 15° | 5.0 | ||
PW-T15-8 | 15° | 8.0 | ||
PW-T25-4 | 25° | 4.0 | ||
PW-T25-5 | 25° | 5.0 | ||
PW-T25-8 | 25° | 8.0 | ||
PW-T40-4 | 40° | 4.0 | ||
PW-T40-8 | 40° | 5.0 |
These adapters fit 22 millimetre metric pressure wash connections
Part No. | Description | |
64008-22-04 | Female metric to 1/4" female NPT | |
64008-22-06 | Female metric to 3/8" female NPT | |
74008-22-06 | Male metric to 3/8" female NPT | |
74016-22-06 | Male metric to 3/8" male NPT |
All of our pistol grip nozzles have full size bodies with insulated
grips. Additional features are listed below:
Part No. | Description | |
571L | Standard nozzle, teal color | |
571TFRL | Threaded front & rubber cap | |
572TFRL | Brass nozzle insert & red for hot water |
Part No. | Description | |
50502 | Insulated nozzle |
Part No. | Description | |
G37-GHT | Garden hose thread |
Part No. | Description | |
G97-GHT | Garden hose thread |
Part No. | Description | |
528 | Full size twist nozzle with rubber grip |
This very compact nozzle is typically used for forest fire mop-up along with
our small diameter garden hose threaded fire hoses.
Part No. | Description | |
50502 | Full size twist nozzle with rubber grip |
These plant washdown nozzles come in two sizes. The standard nozzles
weigh just under 3lb and measure about 6-1/2" long and high.
The aluminum nozzle is full size but lighter in weight. Some users
prefer the new Junior model, which weighs just 2 lb and measures in
at 5-1/4". Both nozzles are rated for a maximum of 150 psi water
up to 93°C and are NOT for use with steam.
NPT Size | Part No. | Description | |
1⁄2" | S-150-W | White standard spray nozzle | |
1⁄2" | S-150-BL | Blue standard spray nozzle | |
1⁄2" | S-150-A | Aluminum spray nozzle | |
3⁄8" | S-150-JR-B | Black junior spray nozzle |
The brass and stainless steel swivel hose barbs listed here are generally
used with these nozzles to reduce wrist fatigue but are ordered
separately, depending on size required. They are supplied with
hanger rings.
NPT Size | Hose Size | Part No. | Description | |
1⁄2" | GHT | G0716SX-08 | Fits standard nozzle | |
1⁄2" | 1⁄2" | G23SSX-050-050 | Fits standard nozzle | |
1⁄2" | 3⁄4" | G23SSX-050-075 | Fits standard nozzle | |
3⁄8" | 3⁄4" | G23SSX-038-075 | Fits junior nozzle |
Part No. | Description | |
G07Y77B | Forged brass | |
G07Y77Z | Cast zinc, plated | |
G07Y77BV | Forged brass with valves | |
G07Y77PV | Grey plastic with valves | |
G07Y77PVG | Green plastic with valves, heavier pattern | |
G07Y77ZV | Cast zinc with valves |
Part No. | Hose I.D. | Pkg Qty | |
G36BM-038 | 3⁄8" | 5 | |
G36BM-050 | 1⁄2" | 5 | |
G36BM-063 | 5⁄8" | 5 | |
G36BM-075 | 3⁄4" | 5 |
Part No. | Hose I.D. | Pkg Qty | |
G36BFH-038 | 3⁄8" | 5 | |
G36BFH-050 | 1⁄2" | 5 | |
G36BFH-063 | 5⁄8" | 5 | |
G36BFH-075 | 3⁄4" | 5 |
Part No. | Hose I.D. | Pkg Qty | |
G36BLF-050 | 1⁄2" | 1 | |
G36BLF-063 | 5⁄8" | 1 | |
G36BLF-075 | 3⁄4" | 1 |
Part No. | Hose I.D. | Pkg Qty | |
G36BLM-050 | 1⁄2" | 1 | |
G36BLM-063 | 5⁄8" | 1 | |
G36BLM-075 | 3⁄4" | 1 |
Material | Hose I.D. | Pkg Qty | |
G36RG | Rubber | 10 | |
G36SG | Stainless Screen | 10 | |
G36VG | Vinyl | 10 |
Part Number | Thread Size | Pkg Qty | |
G0707BSW | GHT | 5 |
Part Number | Thread Size | Pkg Qty | |
G0700B | GHT | 5 | |
G0700B-WC | GHT | 1 |
Part Number | Thread Size | Pkg Qty | |
G1717B | GHT | 1 |
Part Number | Pipe Size | Pkg Qty | |
G0708B-08 | 1⁄2" | 1 | |
G0708B-12 | 3⁄4" | 1 |
Part Number | Pipe Size | Pkg Qty | |
G0716B-08 | 1⁄2" | 1 | |
G0716B-08 | 3⁄4" | 5 |
Part Number | Pipe Size | Pkg Qty | |
G1708B-04 | 1⁄4" | 1 | |
G1708B-06 | 3⁄8" | 1 | |
G1708B-08 | 1⁄2" | 5 | |
G1708B-12 | 3⁄4" | 1 |
Part Number | Pipe Size | Pkg Qty | |
G0708BSW-08 | 1⁄2" | 5 | |
G0708BSW-12 | 3⁄4" | 5 |
Part Number | Pipe Size | Pkg Qty | |
G0716BS-04 | 1⁄4" | 1 | |
G0716BS-06 | 3⁄8" | 1 | |
G0716BS-08 | 1⁄2" | 5 | |
G0716BS-12 | 3⁄4" | 1 |
Part Number | Thread Size | Pkg Qty | |
G1716B-06 | 3⁄8" | 1 | |
G1716B-08 | 1⁄2" | 5 | |
G1716B-12 | 3⁄4" | 5 |

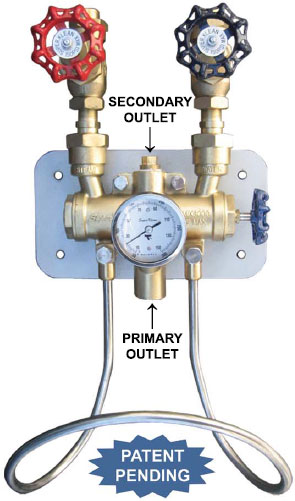

SuperKlean is proud to introduce the most innovative steam and cold water mixing unit specifically designed to provide safe and efficient means of clean up by producing hot water instantly and economically with little or no maintenance. The DURAMIx 8000 unit operates under a wide range of steam and water pressures without changing internal components. In fact, it is one of the only steam and cold water mixing units in the industry with the ability to operate with as little as 30 PSI of water pressure. Its strategic dual output design, one at the bottom for a hose and nozzle and one at the top for hard pipe installation, provides the user with the ability to supply two individual terminals with their own hot water supply. For maximum efficiency, the second outlet can be used to feed a secondary source where hot water is needed after the primary outlet has been shut off. This feature drastically reduces energy producing costs, which is good for the bottom line, as the unit is capable of producing hot water for washdown as well as providing a secondary source or hot water for other uses 24 hours per day, 7 days per week. Our unique internal design does not allow live steam to penetrate. If water pressure fails, the Duramix 8000 will automatically close the steam poppet and not allow live steam to pass through our mixing unit, thus making this unit the safest in the market.
Part Number | Description | |
8000 GM-B | Bronze, steam and cold water wall mounted mixer-hose station. Includes globe valves, check valves, hose rack and mounting bracket. | |
8000 GM-B-T | Bronze, steam and cold water wall mounted mixer-hose station. Includes globe valves, check valves, hose rack, mounting bracket and adjustable angle temperature gauge. |

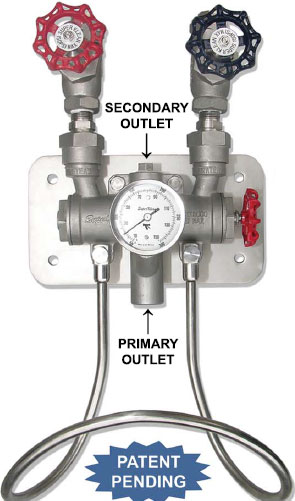

SuperKlean is proud to introduce the most innovative steam and cold water mixing unit specifically designed to provide safe and efficient means of clean up by producing hot water instantly and economically with little or no maintenance. The DURAMIX 8000 unit operates under a wide range of steam and water pressures without changing internal components. In fact, it is one of the only steam and cold water mixing units in the industry with the ability to operate with as little as 30 PSI of water pressure. Its strategic dual output design, one at the bottom for a hose and nozzle and one at the top for hard pipe installation, provides the user with the ability to supply two individual terminals with their own hot water supply. For maximum efficiency, the second outlet can be used to feed a secondary source where hot water is needed after the primary outlet has been shut off. This feature drastically reduces energy producing costs, which is good for the bottom line, as the unit is capable of producing hot water for washdown as well as providing a secondary source or hot water for other uses 24 hours per day, 7 days per week. Our unique internal design does not allow live steam to penetrate. If water pressure fails, the Duramix 8000 will automatically close the steam poppet and not allow live steam to pass through our mixing unit, thus making this unit the safest in the market.
Part Number | Description | |
8000GM-S | 300series stainless steel, steam and cold water wall mounted mixer-hose station. Includes globe valves, check valves, hose rack and mounting bracket. | |
8000 GM-S-T | 300series stainless steel, steam and cold water wall mounted mixer-hose station. Includes globe valves, check valves, hose rack, mounting bracket and adjustable angle temperature gauge. |
SuperKlean's hot & cold water mixing unit was specifically designed for thoroughly blending hot and cold water instantly by mixing supplied hot water with cold water to achieve required temperature output. The unit uses "Y" style body mechanics with lift check valves and ball joint unions for superior flexibility during installation. SuperKlean's inlet center lines have the same dimensions as most of our competitors' units. Our units come with a mounting plate for easy behind the unit cleanup, hose rack for easy user access to the hose, and an optional temperature gauge for accurate temperature readings at outlet.
Part Number | Description | |
3600GM-B | Brass, hot and cold water wall mounted mixer-hose station. Includes globe valves, check valves, hose rack and mounting bracket. | |
3600M-B-T | Brass, hot and cold water wall mounted mixer-hose station. Includes globe valves, check valves, hose rack, mounting bracket and adjustable angle temperature gauge. |
SuperKlean's 300 series stainless steel hot & cold water mixing unit was specifically designed for thoroughly blending hot and cold water instantly by mixing supplied hot water with cold water to achieve required temperature output. The unit uses "Y" style body mechanics with lift check valves and ball joint unions for superior flexibility during installation. SuperKlean's inlet center lines have the same dimensions as most of our competitors' units. Our units come with a mounting plate for easy behind the unit cleanup, hose rack for easy user access to the hose, and an optional temperature gauge for accurate temperature readings at outlet.
Part Number | Description | |
3600GM-S | 300 series stainless steel, hot and cold water wall mounted mixer-hose station. Includes globe valves, check valves, hose rack and mounting bracket. | |
3600M-S-T | 300 series, hot and cold water wall mounted mixer-hose station. Includes globe valves, check valves, hose rack, mounting bracket and adjustable angle temperature gauge. |
SuperKlean's new Duraflow spray nozzles was specifically designed to prevent accidental spray. Its unique cover design is not only durable,but also prevents the front mounted levers, which reduce hand fatigue and offer smooth lever action, from being accidentally activated when the nozzle is dropped. The new DuraFlow spray nozzles also come with a trigger locking mechanism for a safe and secure method of maintaining the nozzle open at any spray pattern.
Variable spray patterns, adjustable from fan spray to solid stream, is one of the many features offered by the new superKlean DuraFlow spray nozzle. Water conservation is assured upon release of lever by the drip-free automatic shutoff feature.
SuperKlean Duraflow spray nozzles are available in 300 Series Stainless Steel and weigh a total of 1.53Lbs.
Part Number | Description | |
DH150S-DB | High flow DuraFlow 300 series stainless steel nozzle with dark blue cover. | |
DH150S-R | High flow DuraFlow 300 series stainless steel nozzle with red cover. | |
DH150S-W | High flow DuraFlow 300 series stainless steel nozzle with white cover. |
SuperKlean's brass and stainless steel hose racks, made out of 321 series stainless steel, are virtually corrosion resistant in most applications and environments. Its aluminium epoxy coated mounting plate was specifically designed for quich and easy installation and meets the required spacing between wall to plate to units.
Part Number | Description | |
11 | 300 series stainless steel hose rack for unit mounting (includes stainless steel bolts & brass end fittings) | |
11-s | 300 series stainless steel hose rack for unit mounting (includes stainless steel bolts & stainless end fittings) | |
12 | 300 series stainless steel hose rack for wall mounting (includes stainless steel bolts & epoxy coated aluminium plate and brass end fittings) | |
12-S | 300 series stainless steel hose rack for wall mounting (includes stainless steel bolts & epoxy coated aluminium plate and stainless steel end fittings) | |
12-SS | 300 series stainless steel hose rack for wall mounting (includes stainless steel mounting plate, stainless steel bolts, stainless steel end fittings, an 4stainless steel anchor bolts) |
