Air Craft Hose

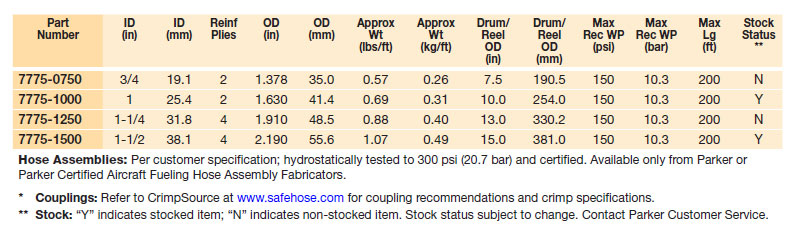

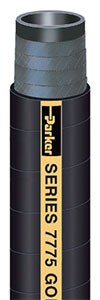

GOLD LABELŪ Aircraft Fueling Hose API/IP 1529, NFPA 407 Series 7775
Series 7775 is a flexible, lightweight, low pressure aircraft fueling hose. The hose construction and materials provide easy handling for reel service and a path to conduct a static electrical charge to ground. The premium nitrile tube minimizes permeation and will not contaminate product going through the hose, and the nitrile cover is resistant to abrasion, oil and weathering. Series 7775 is available in 200-foot continuous lengths.
| Tube: | Black nitrile |
| Reinforcement: | Multiple textile plies |
| Cover: | Static conductive black nitrile; wrapped finish |
| Temperature Range: | -40°F to +180°F (-40°C to +82°C) |
| Brand Method: | Side One: Embossed Side Two: Black text on gold stripe |
| Brand Example: | Side One: PARKER Series 7775 (ID) API/IP 1529/2005 TYPE C
GRADE 1 NFPA 407 (DATE CODE) WP 1034 KPa (150 PSI) Side Two: PARKER GOLD LABELŪ AIRCRAFT FUELING HOSE |
| Design Factor: | 4:1 |
| Industry Standards: | API 1529:2005, Type C, Grade 1; NFPA 407:2007 |
| Applications: | Aircraft fueling with avgas and jet fuel |
| Vacuum: | Not recommended |
| Compare to: | Veyance Advantage | Packaging: | Coils (bulk hose available only to Parker Certified Aircraft Fueling Hose Assembly Fabricators) |

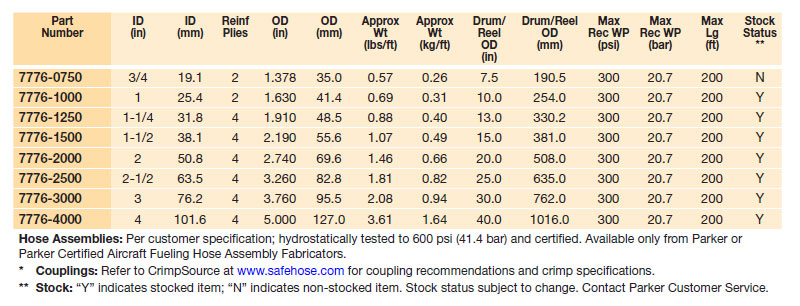

GOLD LABELŪ Aircraft Fueling Hose API/IP 1529, NFPA 407, BS EN1361 Series 7776
Series 7776 is a high pressure hose for top deck reel and platform type aircraft fueling equipment. The hose construction and materials provide a path to conduct a static electrical charge to ground, the premium nitrile tube minimizes permeation and will not contaminate product going through the hose, and the nitrile cover is resistant to abrasion, oil and weathering. The hose is also suitable for defueling service at low pressures (suction/ vacuum rating to 8 in. Hg). Series 7776 is available in 200-foot continuous lengths.
| Tube: | Black nitrile |
| Reinforcement: | Multiple textile plies |
| Cover: | Static conductive black nitrile; wrapped finish |
| Temperature Range: | -40°F to +180°F (-40°C to +82°C) |
| Brand Method: | Side One: Embossed Side Two: Black text on gold stripe |
| Brand Example: | Side One: PARKER SERIES 7776 (ID) API/IP 1529/2005 TYPE C
GRADE 2 NFPA 407 BS EN 1361/2004 (DATE CODE) WP 2068 KPa
(300 PSI) Side Two: PARKER GOLD LABELŪ AIRCRAFT FUELING HOSE |
| Design Factor: | 4:1 |
| Industry Standards: | API 1529:2005, Type E, Grade 2; NFPA 407:2007; BS EN1361:2004 |
| Applications: | Aircraft fueling with avgas and jet fuel |
| Vacuum: | To 8" Hg |
| Compare to: | Contitech Elaflex HD-C; Veyance Jet Ranger & Wingcraft; Semperit 48137 TAPC | Packaging: | Coils (bulk hose available only to Parker Certified Aircraft Fueling Hose Assembly Fabricators) |

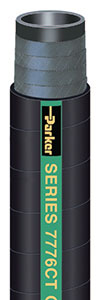

GOLD LABELŪ Cold Temperature Aircraft Fueling Hose API/IP 1529, NFPA 407 Series 7776CT
Series 7776CT is a low temperature, high pressure hose for top deck reel and platform type aircraft fueling equipment. The proprietary rubber compounds enable this hose to stay flexible in extreme low temperatures, and the hose construction and materials provide a path to conduct a static electrical charge to ground. The premium nitrile tube minimizes permeation and will not contaminate product going through the hose, and the nitrile cover is resistant to abrasion, oil and weathering. The hose is also suitable for defueling service at low pressures (suction/vacuum rating to 8 in. Hg).
| Tube: | Black nitrile |
| Reinforcement: | Multiple textile plies |
| Cover: | Static conductive black nitrile; wrapped finish |
| Temperature Range: | -40°F to +180°F (-40°C to +82°C) |
| Brand Method: | Side One: Embossed Side Two: Gold text on green stripe |
| Brand Example: | Side One: PARKER SERIES 7776CT (ID) API/IP 1529/2005 TYPE C-CT
GRADE 2 NFPA 407 (DATE CODE) WP 2068 KPa (300 PSI) Side Two: PARKER GOLD LABELŪ AIRCRAFT FUELING HOSE |
| Design Factor: | 4:1 |
| Industry Standards: | API 1529:2005, Type C-CT, Grade 2; NFPA 407:2007 |
| Applications: | Aircraft fueling with avgas and jet fuel in cold temperature environments |
| Vacuum: | To 8" Hg |
| Compare to: | Contitech Elaflex HDLT-C | Packaging: | Coils (bulk hose available only to Parker Certified Aircraft Fueling Hose Assembly Fabricators) |

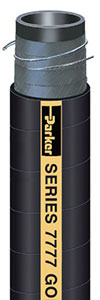

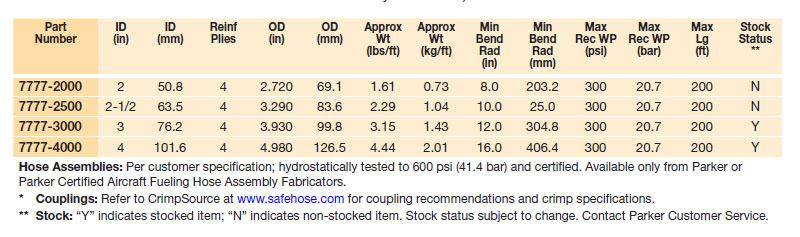

GOLD LABELŪ Jac-Riser Aircraft Fueling Hose API/IP 1529, NFPA 407, BS EN1361 Series 7777
Series 7777 is a flexible connector hose for aviation fuel supplied through an adjustable elevated aircraft service platform, called a Jac-Riser, connected to a mobile dispenser cart that is supplied by an in-ground hydrant system. The hose construction and materials provide a path to conduct a static electrical charge to ground, and the dual wire helix provides flexibility, kink resistance and full suction capability for both fueling and defueling/unloading service. The premium nitrile tube minimizes permeation and will not contaminate product going through the hose, and the nitrile cover is resistant to abrasion and oil. Series 7777 is available in 200-foot continuous lengths.
| Tube: | Black nitrile |
| Reinforcement: | Multiple textile plies with dual wire helix |
| Cover: | Static conductive black nitrile; wrapped finish |
| Temperature Range: | -40°F to +180°F (-40°C to +82°C) |
| Brand Method: | Side One: Embossed Side Two: Black text on gold stripe |
| Brand Example: | Side One: PARKER SERIES 7777 (ID) API/IP 1529/2005 TYPE E GRADE
2 NFPA 407 BS EN 1361/2004 (DATE CODE) WP 2068 KPa (300 PSI) Side Two: PARKER GOLD LABELŪ AIRCRAFT FUELING HOSE |
| Design Factor: | 4:1 |
| Industry Standards: | API 1529:2005, Type E, Grade 2; NFPA 407:2007; BS EN1361:2004 |
| Applications: | Aircraft fueling and defueling/unloading with avgas and jet fuel |
| Vacuum: | Full |
| Compare to: | Contitech Elaflex TW; Eaton Carter 64405; Semperit 56132 TAPE | Packaging: | Coils (bulk hose available only to Parker Certified Aircraft Fueling Hose Assembly Fabricators) |
