Hand Crank & Motorized Reels
100 Series
| Less Hose | ||||||||
| Model | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
PSI | APRX. LBS. | ||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||
| 112-3-50 | 3⁄8” | 5⁄8” | 50 | 1⁄4” | 1⁄2” | 85 | 4,000 | 15 |
| 112-3-100 | 3⁄8” | 5⁄8” | 100 | 1⁄4” | 1⁄2” | 150 | 4,000 | 19 |
| 112-3-150 | 3⁄8” | 5⁄8” | 150 | 1⁄4” | 1⁄2” | 225 | 4,000 | 21 |
| 112-3-250 | 3⁄8” | 5⁄8” | 250 | 1⁄4” | 1⁄2” | 350 | 4,000 | 30 |
| 112-3-400 | 3⁄8” | 5⁄8” | 400 | 1⁄4” | 1⁄2” | 550 | 4,000 | 33 |
| 112-3-550 | 3⁄8” | 5⁄8” | 550 | 1⁄4” | 1⁄2” | 800 | 4,000 | 35 |
| 112-4-75 | 1⁄2” | 7⁄8” | 75 | 3⁄8” | 3⁄4” | 100 | 4,000 | 21 |
| 112-4-225 | 1⁄2” | 7⁄8” | 225 | 3⁄8” | 3⁄4” | 315 | 4,000 | 31 |
| 112-4-350 | 1⁄2” | 7⁄8” | 350 | 3⁄8” | 3⁄4” | 450 | 4,000 | 37 |
| 112-5-100 | 3⁄4” | 11⁄4” | 100 | 1⁄2” | 1” | 150 | 4,000 | 35 |

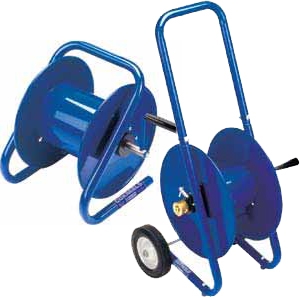

CM & DM Series
CM SERIES MODELS
- CADDY MOUNT
| Less Hose | ||||||||
| Model | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
PSI | APRX. LBS. | ||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||
| 112-3-100-CM | 3⁄8” | 5⁄8” | 100 | 1⁄4” | 1⁄2” | 150 | 4,000 | 18 |
| 112-3-150-CM | 3⁄8” | 5⁄8” | 150 | 1⁄4” | 1⁄2” | 225 | 4,000 | 22 |
| 117-4-225-CM | 1⁄2” | 7⁄8” | 225 | 3⁄8” | 3⁄4” | 315 | 4,000 | 28 |
DM SERIES MODELS
- DOLLY MOUNT
| Less Hose | ||||||||
| Model | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
PSI | APRX. LBS. | ||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||
| 117-3-200-DM | 3⁄8” | 5⁄8” | 200 | 1⁄4” | 1⁄2” | 350 | 4,000 | 37 |
| 117-4-225-DM | 1⁄2” | 7⁄8” | 225 | 3⁄8” | 3⁄4” | 315 | 4,000 | 39 |
SM Series
SM SERIES MODELS
| Less Hose | ||||||||
| Model | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
PSI | APRX. LBS. | ||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||
| SM12-3-100 | 3⁄8” | 5⁄8” | 100 | 1⁄4” | 1⁄2” | 150 | 4,000 | 15 |
| SM17-3-250 | 3⁄8” | 5⁄8” | 250 | 1⁄4” | 1⁄2” | 350 | 4,000 | 26 |
| SM17-4-125 | 1⁄2” | 7⁄8” | 125 | 3⁄8” | 3⁄4” | 150 | 4,000 | 26 |
1125 Series
1125 SERIES MODELS
- All reels supplied less hose
| Less Hose | |||||||||||
| Model | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
INLET SWIVEL & OUTLET RISER |
PSI | MODEL | HP PSI | APRX. LBS. | ||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
| 1125-4-100 | 1⁄2” | 7⁄8” | 100 | 3⁄8” | 3⁄4” | 140 | 1⁄2” F NPT | 3,000 | HP1125-4-100 | 5,000 | 36 |
| 1125-4-200 | 1⁄2” | 7⁄8” | 200 | 3⁄8” | 3⁄4” | 300 | 1⁄2” F NPT | 3,000 | HP1125-4-200 | 5,000 | 39 |
| 1125-4-325 | 1⁄2” | 7⁄8” | 325 | 3⁄8” | 3⁄4” | 450 | 1⁄2” F NPT | 3,000 | HP1125-4-325 | 5,000 | 48 |
| 1125-4-450 | 1⁄2” | 7⁄8” | 450 | 3⁄8” | 3⁄4” | 625 | 1⁄2” F NPT | 3,000 | HP1125-4-450 | 5,000 | 52 |
| 1125-4-500 | 1⁄2” | 7⁄8” | 500 | 3⁄8” | 3⁄4” | 700 | 1⁄2” F NPT | 3,000 | HP1125-4-500 | 5,000 | 58 |
| 1125-5-50 | 3⁄4” | 11⁄4” | 50 | 1⁄2” | 7⁄8” | 100 | 3⁄4” F NPT | 3,000 | HP1125-5-50 | 4,500 | 38 |
| 1125-5-100 | 3⁄4” | 11⁄4” | 100 | 1⁄2” | 7⁄8” | 200 | 3⁄4” F NPT | 3,000 | HP1125-5-100 | 4,500 | 42 |
| 1125-5-175 | 3⁄4” | 11⁄4” | 175 | 1⁄2” | 7⁄8” | 325 | 3⁄4” F NPT | 3,000 | HP1125-5-175 | 4,500 | 50 |
| 1125-5-200 | 3⁄4” | 11⁄4” | 200 | 1⁄2” | 7⁄8” | 450 | 3⁄4” F NPT | 3,000 | HP1125-5-200 | 4,500 | 55 |
| 1125-5-250 | 3⁄4” | 11⁄4” | 250 | 1⁄2” | 7⁄8” | 500 | 3⁄4” F NPT | 3,000 | HP1125-5-250 | 4,500 | 59 |
| 1125-6-35 | 1” | 17⁄16” | 35 | 3⁄4” | 11⁄4” | 50 | 1” F NPT | 3,000 | - | - | 50 |
| 1125-6-50 | 1” | 17⁄16” | 50 | 3⁄4” | 11⁄4” | 75 | 1” F NPT | 3,000 | - | - | 55 |
| 1125-6-75 | 1” | 17⁄16” | 75 | 3⁄4” | 11⁄4” | 120 | 1” F NPT | 3,000 | - | - | 62 |
| 1125-6-100 | 1” | 17⁄16” | 100 | 3⁄4” | 11⁄4” | 150 | 1” F NPT | 3,000 | - | - | 69 |
1175 Series
1175 SERIES MODELS
- All reels supplied less hose
| Less Hose | ||||||||||
| Model | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
INLET SWIVEL ASSEMBLY |
OUTLET RISER |
PSI | APRX. LBS. | ||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||
| 1175-6-50 | 1” | 17⁄16” | 50 | 3⁄4” | 11⁄4” | 100 | 1” F NPT 90° | 1” F NPT | 3,000 | 67 |
| 1175-6-100 | 1” | 17⁄16” | 100 | 3⁄4” | 11⁄4” | 150 | 1” F NPT 90° | 1” F NPT | 3,000 | 70 |
| 1175-6-125 | 1” | 17⁄16” | 125 | 3⁄4” | 11⁄4” | 200 | 1” F NPT 90° | 1” F NPT | 3,000 | 72 |
| 1175-6-135 | 1” | 17⁄16” | 135 | 3⁄4” | 11⁄4” | 175 | 1” F NPT 90° | 1” F NPT | 3,000 | 70 |
| 1175-6-150 | 1” | 17⁄16” | 150 | 3⁄4” | 11⁄4” | 250 | 1” F NPT 90° | 1” F NPT | 3,000 | 75 |
| 1175-6-200 | 1” | 17⁄16” | 200 | 3⁄4” | 11⁄4” | 300 | 1” F NPT 90° | 1” F NPT | 3,000 | 83 |
1185 Series
1185 SERIES MODELS
- All reels supplied less hose
| Less Hose | |||||||||
| Model | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
INLET SWIVEL ASSEMBLY |
PSI | APRX. LBS. | ||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||
| 1185-1124 | 11⁄2” | 21⁄16” | 50 | 11⁄4” | 113⁄16” | 75 | 11⁄2” F NPT | 600 | 76 |
| 1185-1524 | 11⁄2” | 21⁄16” | 75 | 11⁄4” | 113⁄16” | 100 | 11⁄2” F NPT | 600 | 81 |
| 1185-2020 | 11⁄2” | 21⁄16” | 70 | 11⁄4” | 113⁄16” | 80 | 11⁄2” F NPT | 600 | 70 |
| 1185-2024 | 11⁄2” | 21⁄16” | 100 | 11⁄4” | 113⁄16” | 125 | 11⁄2” F NPT | 600 | 94 |
| 1185-2028 | 11⁄2” | 21⁄16” | 125 | 11⁄4” | 113⁄16” | 180 | 11⁄2” F NPT | 600 | 109 |
| 1185-2528 | 11⁄2” | 21⁄16” | 150 | 11⁄4” | 113⁄16” | 220 | 11⁄2” F NPT | 600 | 122 |
| 1185-3324 | 11⁄2” | 21⁄16” | 175 | 11⁄4” | 113⁄16” | 225 | 11⁄2” F NPT | 600 | 154 |
| 1185-3328 | 11⁄2” | 21⁄16” | 250 | 11⁄4” | 113⁄16” | 325 | 11⁄2” F NPT | 600 | 169 |
1185 SERIES MODELS WITH 90° SWIVEL & 3000 PSI
- All reels supplied less hose
| Less Hose | |||||||||
| Model | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
INLET SWIVEL ASSEMBLY |
PSI | APRX. LBS. | ||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||
| 1185-1124-BUXX | 11⁄2” | 21⁄16” | 50 | 11⁄4” | 113⁄16” | 75 | 11⁄2” F NPT | 3,000 | 76 |
| 1185-1524-BUXX | 11⁄2” | 21⁄16” | 75 | 11⁄4” | 113⁄16” | 100 | 11⁄2” F NPT | 3,000 | 81 |
| 1185-2020-BUXX | 11⁄2” | 21⁄16” | 70 | 11⁄4” | 113⁄16” | 80 | 11⁄2” F NPT | 3,000 | 70 |
| 1185-2024-BUXX | 11⁄2” | 21⁄16” | 100 | 11⁄4” | 113⁄16” | 125 | 11⁄2” F NPT | 3,000 | 94 |
| 1185-2028-BUXX | 11⁄2” | 21⁄16” | 125 | 11⁄4” | 113⁄16” | 180 | 11⁄2” F NPT | 3,000 | 109 |
| 1185-2528-BUXX | 11⁄2” | 21⁄16” | 150 | 11⁄4” | 113⁄16” | 220 | 11⁄2” F NPT | 3,000 | 122 |
| 1185-3324-BUXX | 11⁄2” | 21⁄16” | 175 | 11⁄4” | 113⁄16” | 225 | 11⁄2” F NPT | 3,000 | 154 |
| 1185-3328-BUXX | 11⁄2” | 21⁄16” | 250 | 11⁄4” | 113⁄16” | 325 | 11⁄2” F NPT | 3,000 | 169 |
